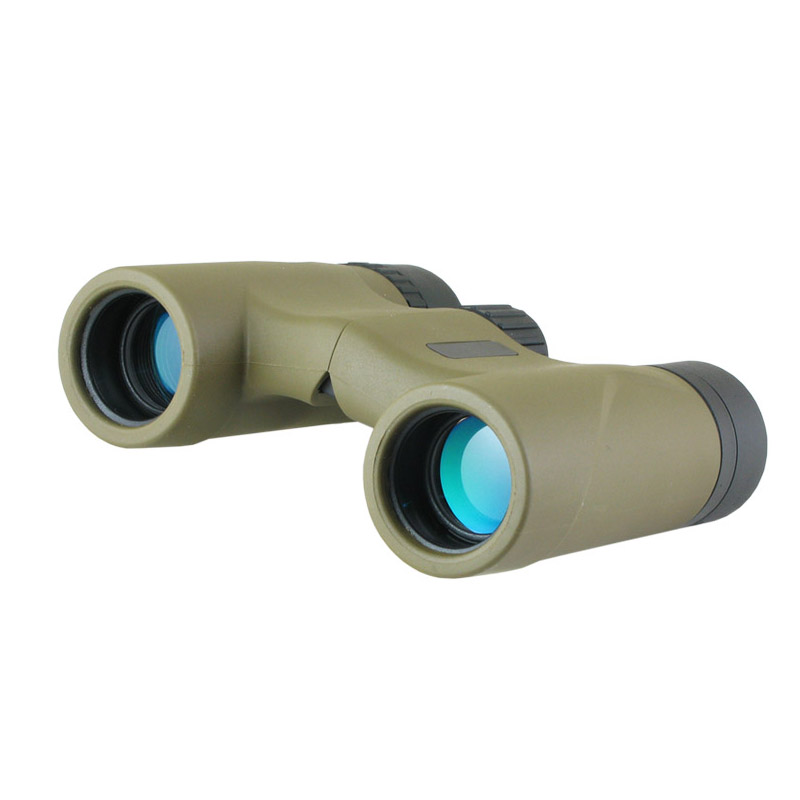

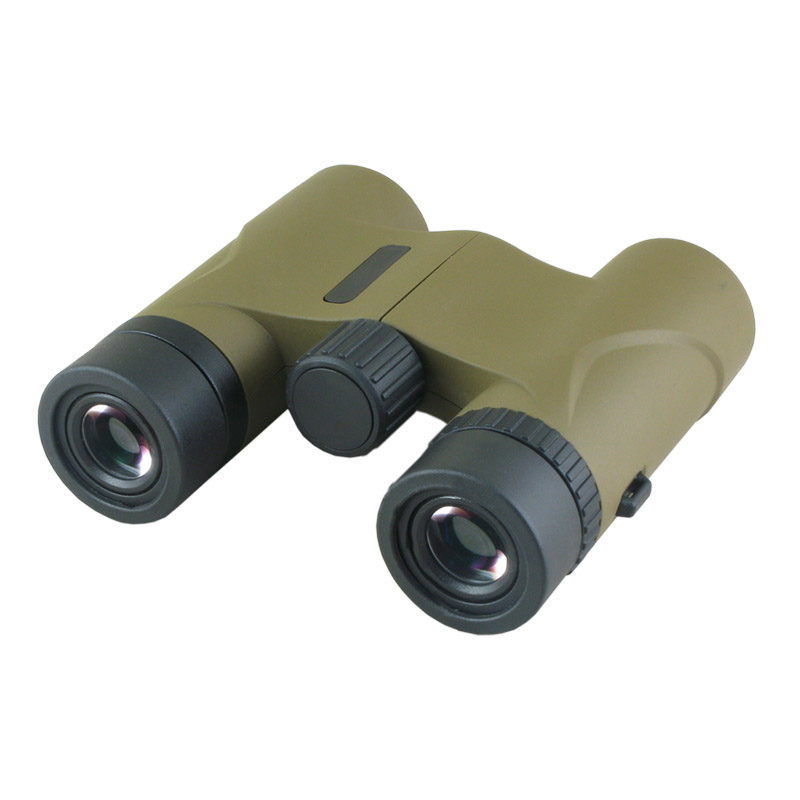

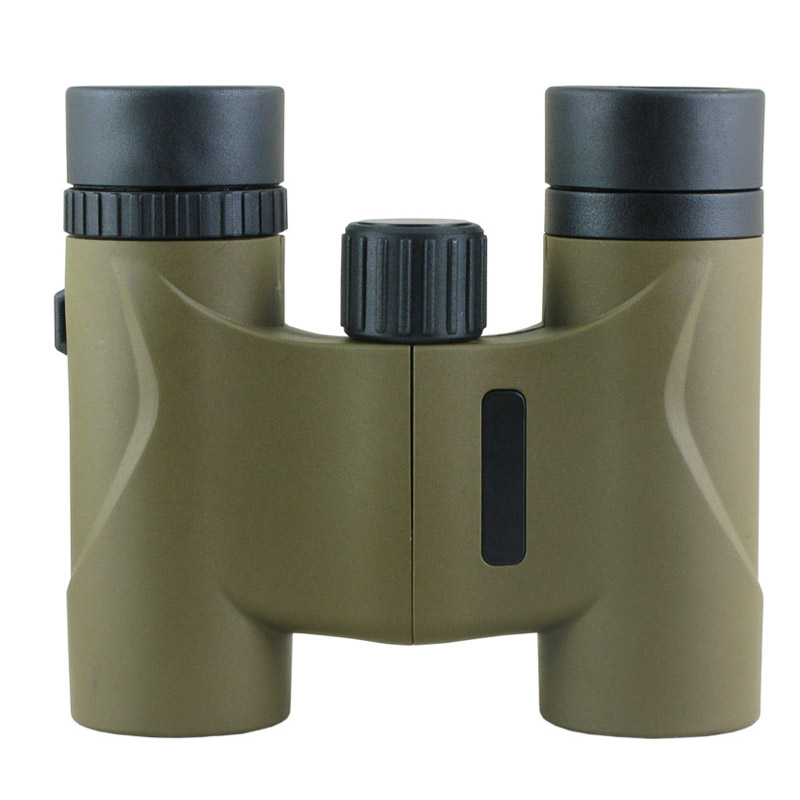

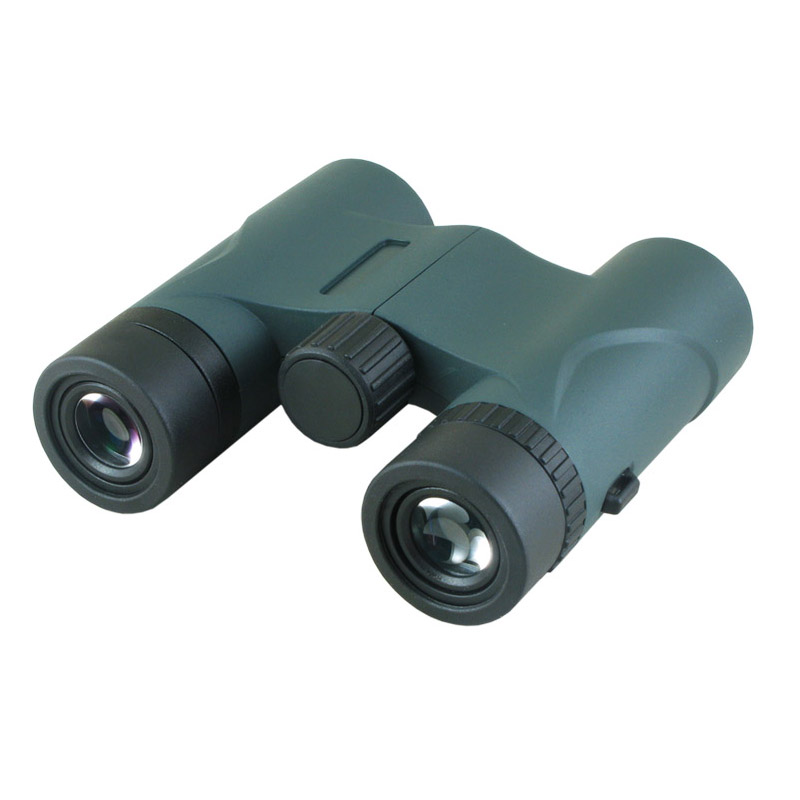

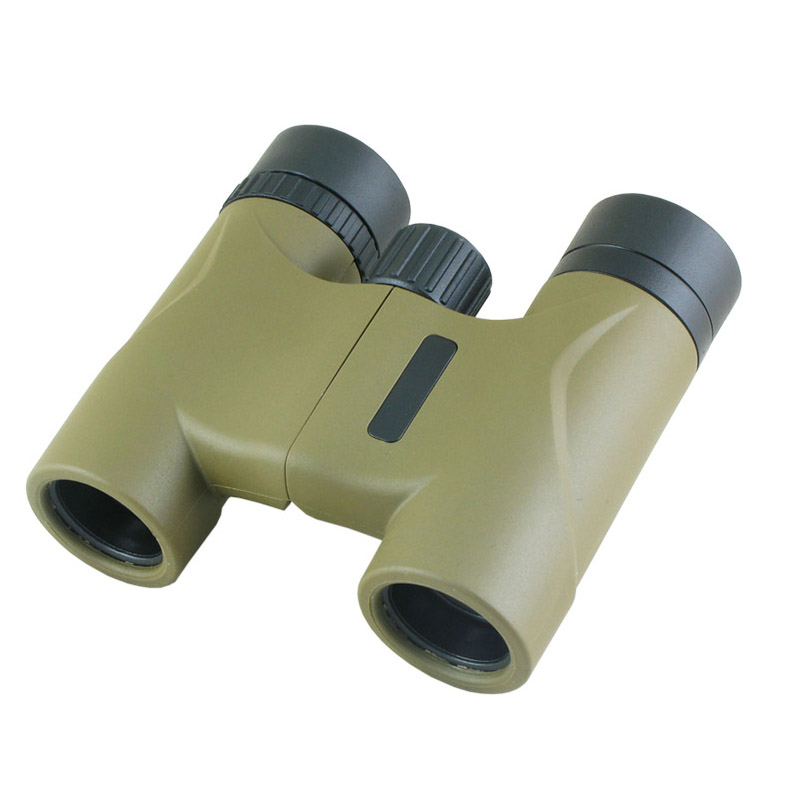

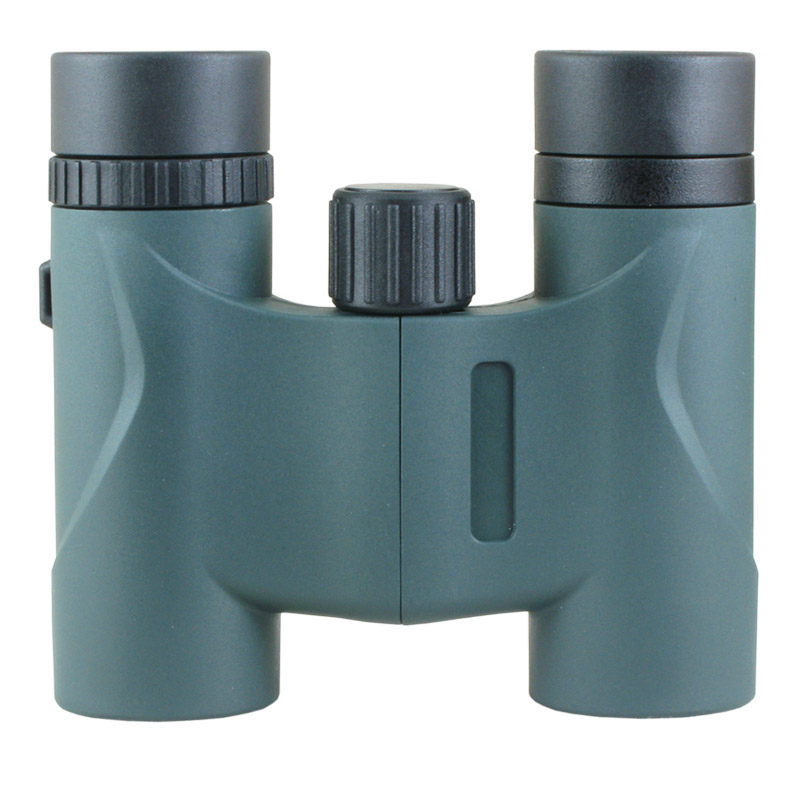

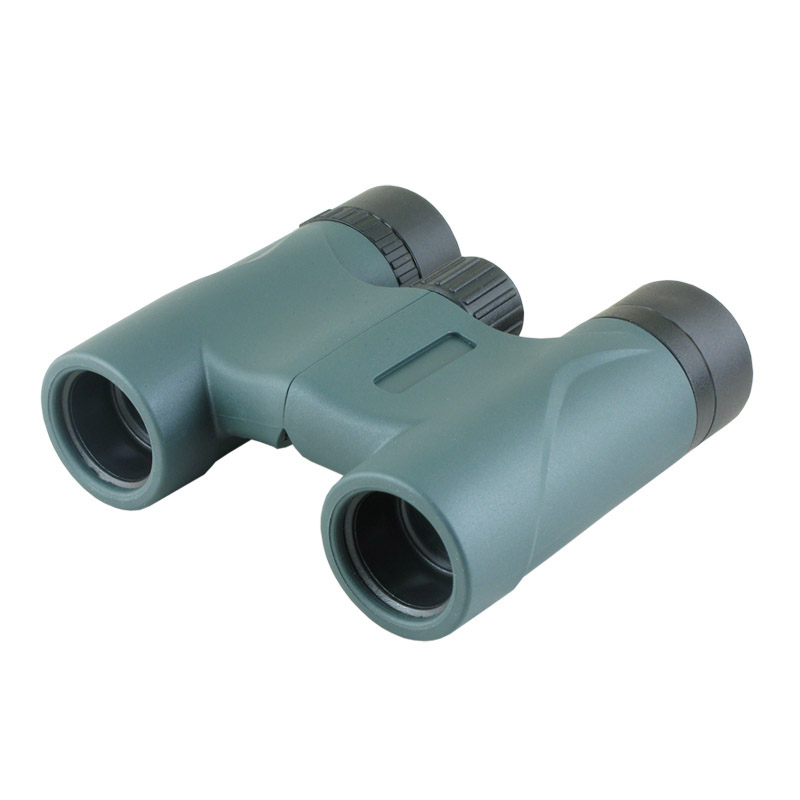

Roof Prism Binoculars
8x21 10x25
- Model : BD 2324
- Magnification : 8x
- Obj.lensr : 22 mm
- Field Angle : 7.2°
- Product description: This series Binoculars in your pocket, pack, or glove box for quick glassing on the go. With their light weight and short length, you won't be bogged down when you're on the move.
Key Features :
● Ergonomic BK7 Roof Prisms
● Anti-Reflection Fully Coated Optics
● Closed Bridge Configuration
● Low-Profile Center Focus Dial
● Twist-Up Rubber Eyecups
● Compact and Lightweight Design
Overview :
This series Binoculars in your pocket, pack, or glove box for quick glassing on the go. | |||||||||||
With their light weight and short length, you won't be bogged down when you're on the move. | |||||||||||
The moderate magnification produces a generous field of view with true-to-life colors and sharp contrast. |
● Ideal for outdoor activities like hiking and bird watching, viewing sporting events and concerts, or general nature watching or sightseeing | |||||||||||
● BK7 roof prisms allow for thin optical tubes for easier handling and a small folded size | |||||||||||
● Anti-reflection fully coated optics help to improve light transmission to keep views bright and clear and boost contrast and clarity | |||||||||||
● 22mm - 32mm objective lenses help to maintain a compact form factor |
● Closed-bridge configuration provides a stable platform for the internal focusing mechanism | |||||||||||
● Low-profile center focusing wheel helps to maintain a compact form and minimizes snagging hazard | |||||||||||
● Right-eye dioptric correction allows users to compensate for optical prescription for sharper views | |||||||||||
● Twist-Up rubber eyecups for easy use with or without eyewear | |||||||||||
● 11 mm eye relief (8x22mm) | |||||||||||
● 2.7mm exit pupil (8x22mm) |
● Dual-hinge design allows the optical tubes to fold under the bridge when closed to minimize the form factor for easier storage and carrying | |||||||||||
● Matte-black rubber armor protects against bumps and impacts | |||||||||||
● Diamond-textured palm pads provide additional slip-resistance while adding an elegant and sleek look | |||||||||||
● Lightweight design, weighs just over 7 ounces | |||||||||||
● Includes case and neck strap |
Model | BD 2324 | BD 2324 |
Specification | 8x22mm | 10x25mm |
Magnification | 8x | 10x |
Objective Lens Diameter | 22 mm | 25 mm |
Angle of View | 7.2° | 5.5° |
Field of View | 126 m @ 1000 m | 96 m @ 1000 m |
Field of View | 378 ft @1000 yd | 288 ft @1000 yd |
Minimum Focus Distance | 16.4 ft/ 5 m | 16.4 ft/ 5 m |
Exit Pupil | 2.8 mm | 2.5 mm |
Eye Relief | 12 mm | 12 mm |
Diopter Adjustment | Yes / ±4 | Yes / ±4 |
Focus Type | Center | Center |
Prism Type | Roof (BK7) | Roof (BK7) |
Lens Coating | Fully Multi | Fully Multi |
Eyecups | Twist-Up | Twist-Up |
Waterproof | No | No |
Weight | 200 g | 225 g |
Maximum Size | 106x36x96 mm | 106x36x105 mm |
