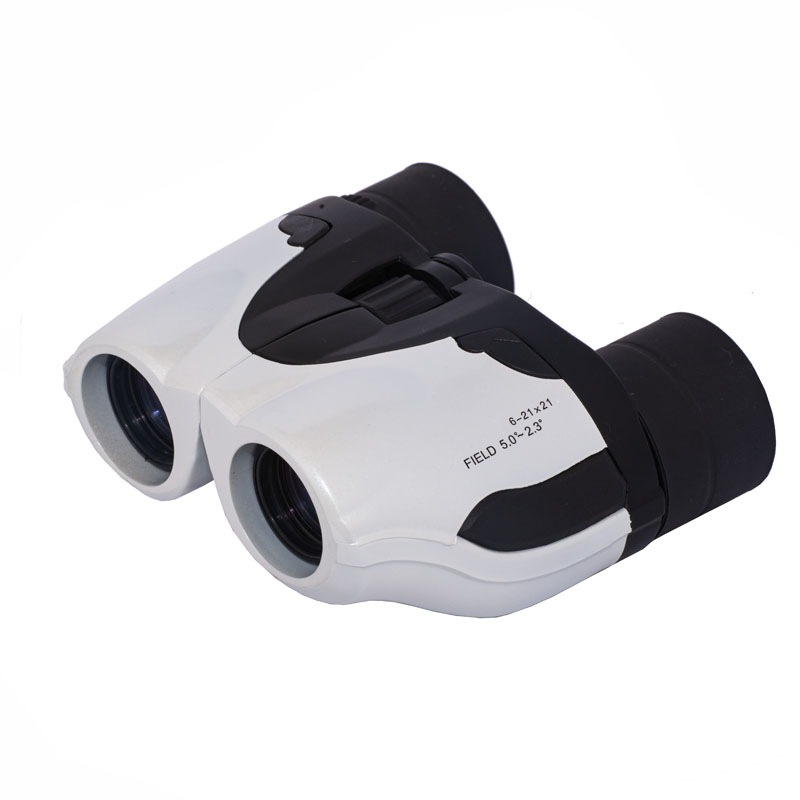

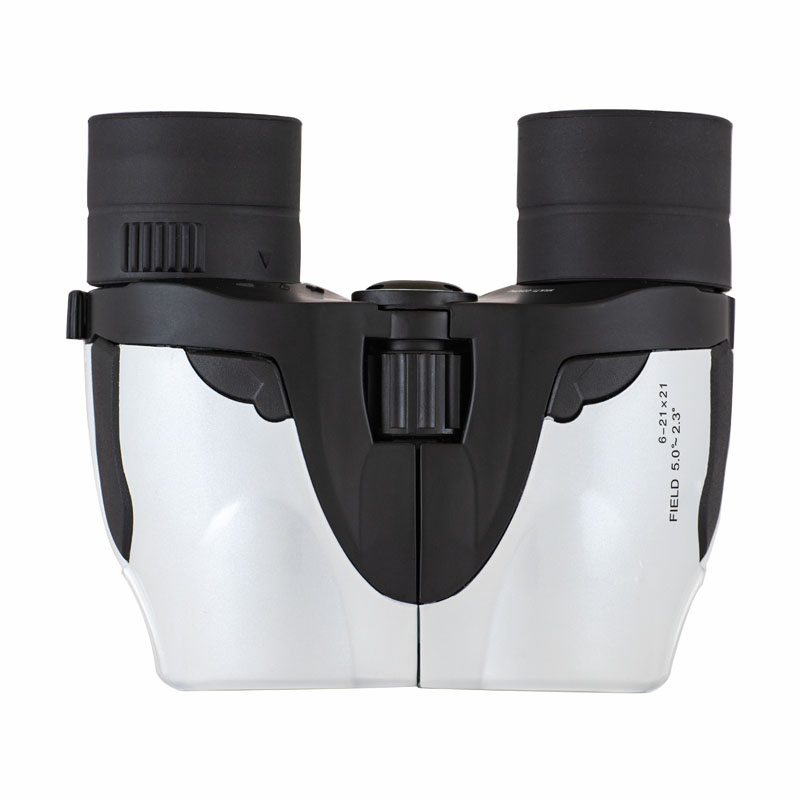

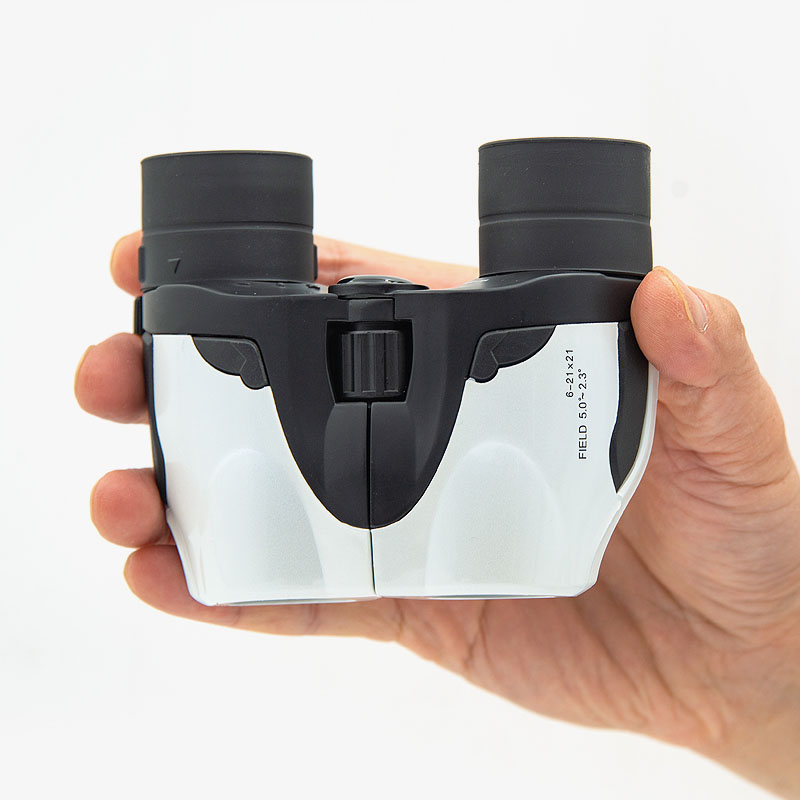

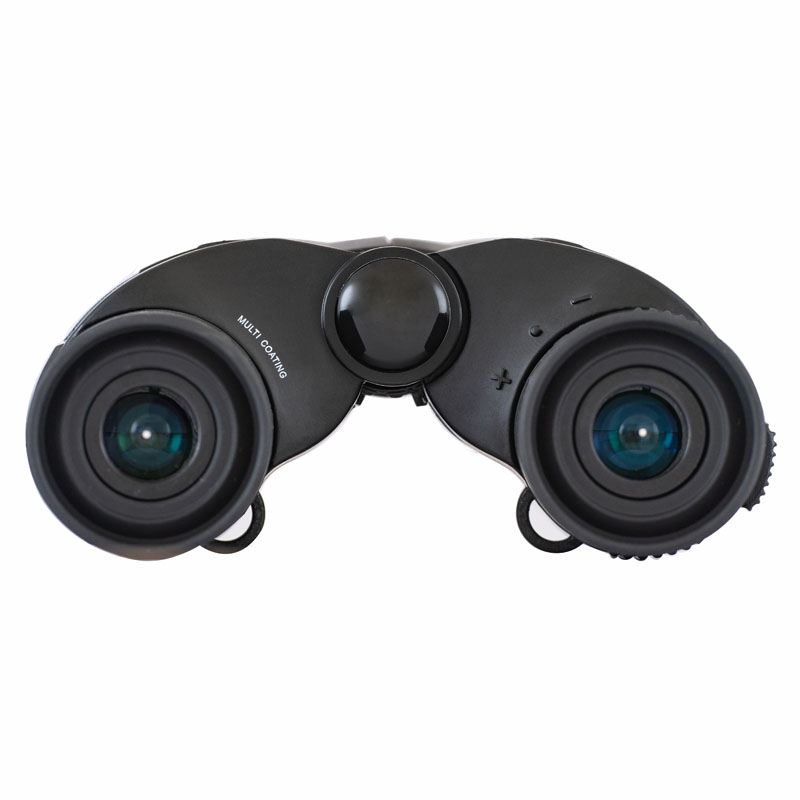

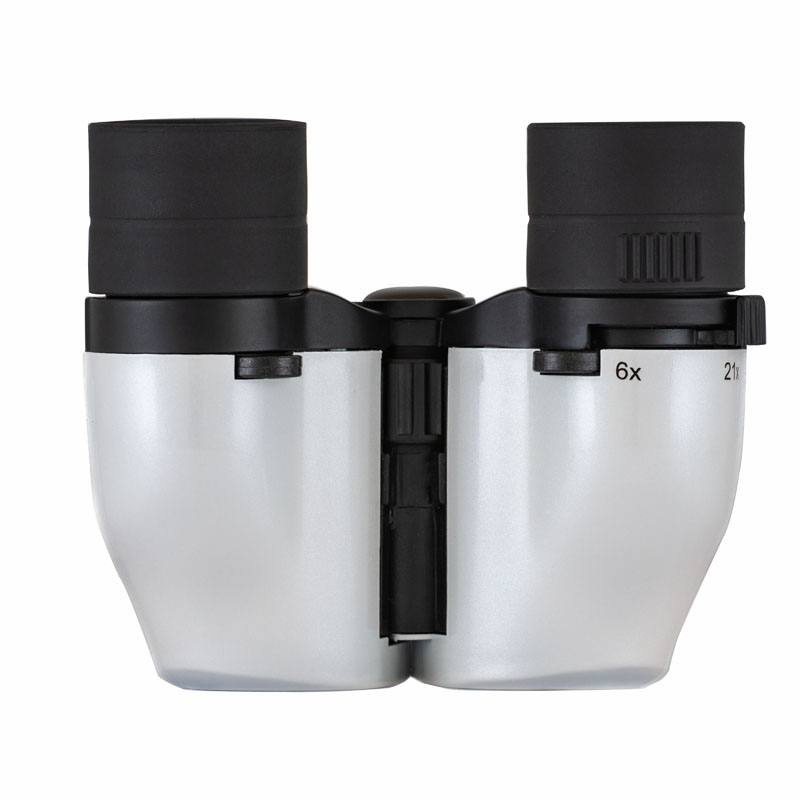

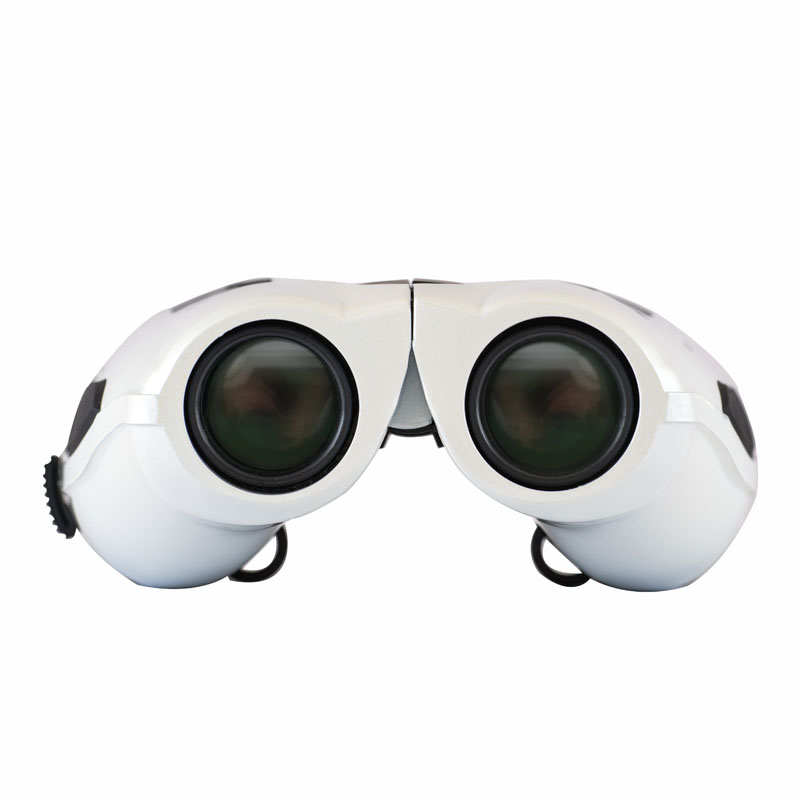

Zoom Compact Binoculars
6-20x21 7-21x21 8-30x21 10-40x21
- Model:BSZ5565
- Magnification: 7-21x
- Objective Lens: 21 mm
- Angle of View: 4.5°-2.3º
- Product description: 7-21x21 Zoom Binoculars from deliver versatility and portability that easily fits in a pack, pocket, or purse.
Key Features :
● BK7 Reverse-Porro Prisms
● Compact Reverse Porro Prism Design
● Fully Multi-Coated Optics
● Exceptionally Wide Zoom Range
● Fold-Down Rubber Eyecups
● Center Focus Knob
Overview :
7-21x21 Zoom Binoculars from deliver versatility and portability that easily fits in a pack, pocket, or purse. The wide 3x magnification range is well suited for medium- to long-range viewing and ideal for sightseeing and glassing on the trail or in the woods. proprietary zoom lever, lLocated laterally to the right eyepiece, is ergonomically placed to be accessible with either hand for easier use. Fold-Down eyecups help to ensure a comfortable viewing distance for almost any viewer—even if they wear eyeglasses.
Optical Performance:
● Wide 7-21x zoom range
● 21 mm objective lenses
● Compact reverse-Porro prism design
● Multi-Coated optics ensure images are bright and clear with improved contrast and accurate color representation
● Wide 31°- 48° apparent angle of view
● 237 (7x) to 123 (21x) foot field of view at 1000 yards
Use and Handling :
● Large center focusing wheel is easy to manipulate, even when wearing gloves
● Right-eye dioptric correction enables users to compensate for individual optical prescription
● Fold-Down rubber eyecups for comfortable use with or without eyewear
● Close 5' short-focus distance
● 3.1 - 1.0 mm exit pupil
● 11.0 - 8 mm eye relief
Construction Details
● Lightweight plastic chassis
● Protective black rubber armor provides a slip-resistant grip
● Textured palm pads improve grip security
● Weight: 205 g
Performance :
Model: | BSZ5565 | BSZ5565 | BSZ5565 | BSZ5565 |
Specification | 6-20x21mm | 7-21x21mm | 8-30X21mm | 10-40X21mm |
Magnification | 6x - 20x | 7x - 21x | 8x - 30x | 10x - 40x |
Objective Lens Diameter | 21 mm | 21 mm | 21 mm | 21 mm |
Angle of View | 5.0° - 2.3º | 4.5°-2.3º | 3.5° - 2.0º | 3.0° - 1.2º |
Field of View | 88 - 41m @ 1000 m | 79m -41m @ 1000 m | 62m-35m @ 1000 m | 53m-21m @ 1000 m |
Field of View | 264 - 123 ft @1000 yd | 237 - 123 ft @1000 yd | 186 - 105 ft @1000 yd | 159 - 63ft @1000 yd |
Minimum Focus Distance | 16.40 ft / 5 m | 16.40 ft / 5 m | 16.40 ft / 5 m | 16.40 ft / 5 m |
Exit Pupil | 3.5 - 1.05 mm | 3.0 - 1.0 mm | 2.63 - 0.7 mm | 2.8 - 0.9 mm |
Eye Relief | 11.0 - 8.0 mm | 11.0 - 8.0 mm | 11.0 - 8.0 mm | 11.0 - 8.0 mm |
Diopter Adjustment | Yes / ±4 | Yes / ±4 | Yes / ±4 | Yes / ±4 |
Focus Type | Center | Center | Center | Center |
Prism Type | Porro (BK7) | Porro (BK7) | Porro (BK7) | Porro (BK7) |
Lens Coating | Fully Multi | Fully Multi | Fully Multi | Fully Multi |
Eyecups | Fold-Down | Fold-Down | Fold-Down | Fold-Down |
Weight | 205 g | 205 g | 205 g | 205 g |
Size | 107x46x92 mm | 107x46x92 mm | 107x46x92 mm | 107x46x92 mm |
